SB-16SSW

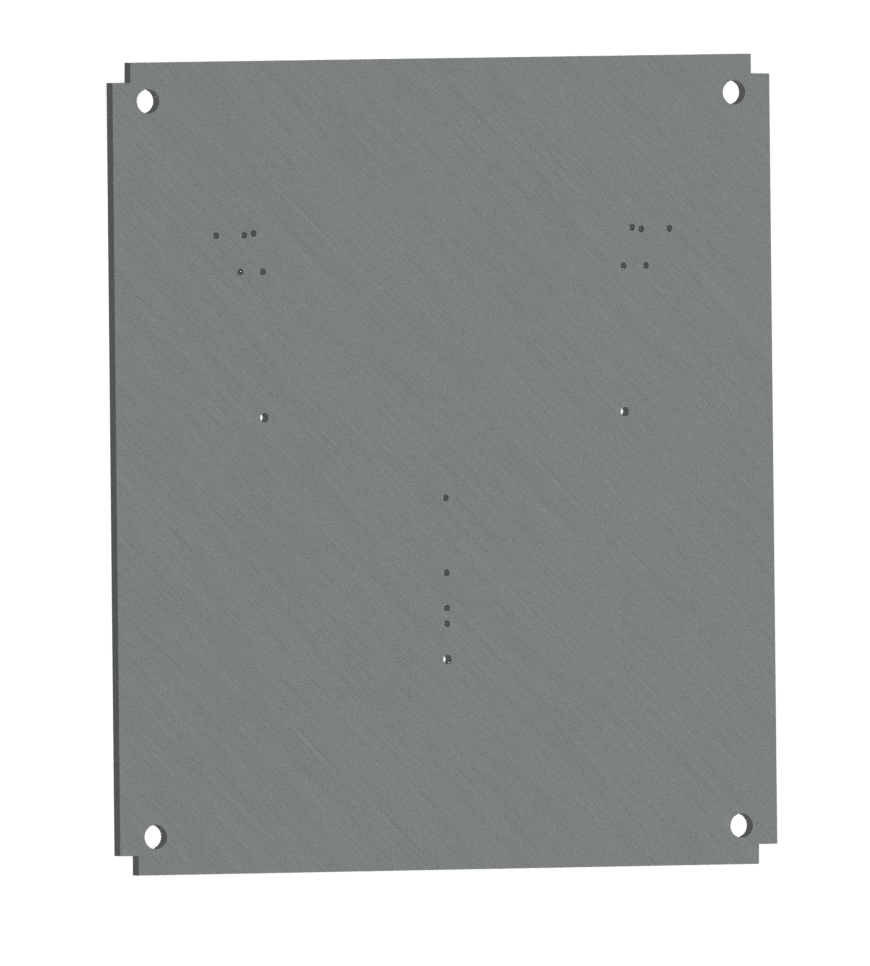

The SB-16SSW is a NEMA 3R wall mountable controls enclosure measuring 16 inches wide, 18 inches high and 11 inches deep. This stainless steel enclosure features a continuous hinge and dual locking entry for maximum security. Bottom plate and removable backboard include pre-cut holes for easy conduit and component installation.

PRODUCT SPECIFICATIONS

Material	304 Stainless Steel
NEMA Rating	TYPE 3R
Overall Dimensions	16.00 x 18.00 x 10.96 inches
Backboard Mounting Dimensions	13.00 x 15.00 inches
Weight	35 lbs
Locking Mechanism	Three-Point Latch
Security Provisions	Padlock Provisions
Hardware Included	Wall Mount Bracket & Bottom Plate
Warranty	10 Years
UL Listed	508A ( File #E162786)

CONSTRUCTION
