EXPOSED METER PEDESTAL (ECS)

PRODUCT OVERVIEW
GET A QUOTE
Find a Distributor

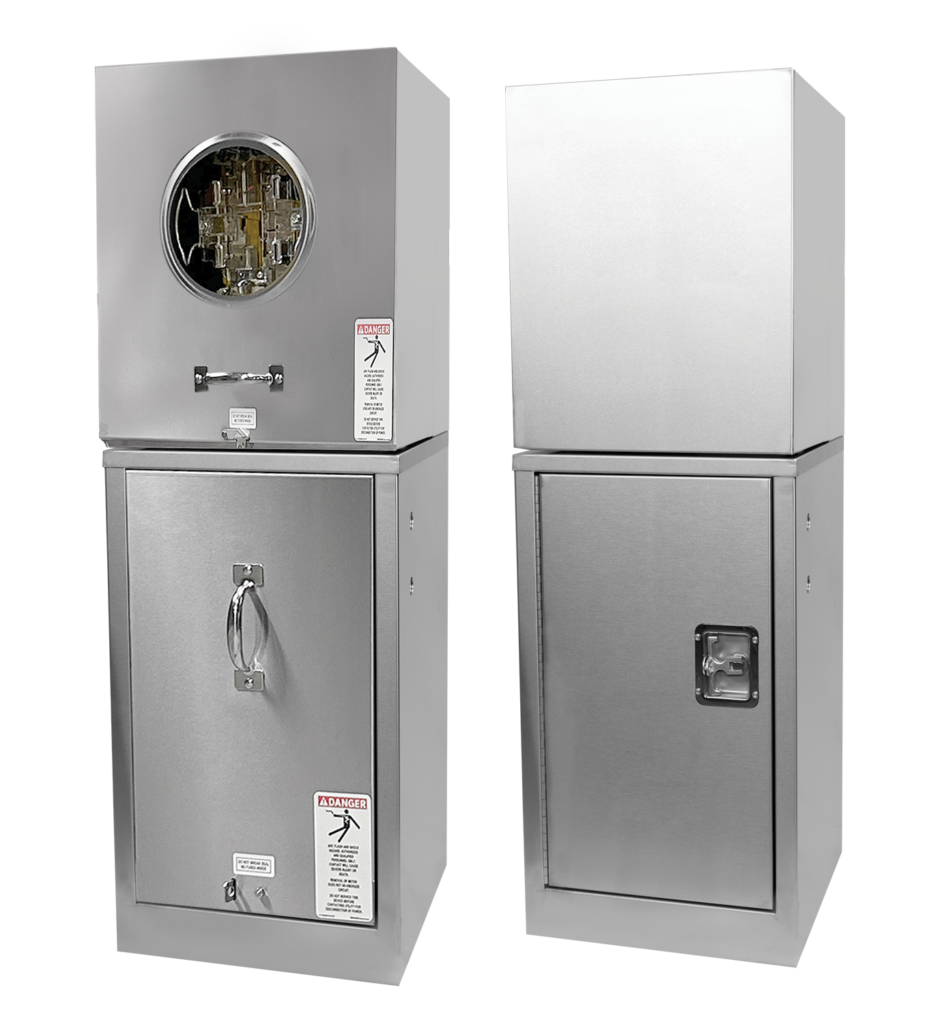

StrongBox ECS Meter Pedestals are engineered to meet specifications for exposed meter applications, featuring a ringless meter socket with a bypass lever, along with separate utility and customer sections. These compact pedestals are available in multiple configurations ranging from 100-200 amps and are constructed from durable, long-lasting stainless steel.

FEATURES:

  • Exposed Meter with Lever Bypass
  • 100-200 amp service available
  • 100% Stainless Steel construction with natural brush finish
  • NEMA Type 3R Rated and UL 508A Listed
  • All access points include padlock provisions

CONFIGURATIONS

Select product number for details
Product NumberSize (Width x Height x Depth)Description
ECS-11008-10L16 x 48 x 17 inches100 Amp, 1 Phase, 120/240v, 4 Jaw, 10k AIC, 8 Pos
ECS-11008-22L16 x 48 x 17 inches100 Amp, 1 Phase, 120/240v, 4 Jaw, 22k AIC, 8 Pos
ECS-11008-65L16 x 48 x 17 inches100 Amp, 1 Phase, 120/240v, 4 Jaw, 65k AIC, 8 Pos
ECS-11016-10L16 x 48 x 17 inches100 Amp, 1 Phase, 120/240v, 4 Jaw, 10k AIC, 16 Pos
ECS-11016-22L16 x 48 x 17 inches100 Amp, 1 Phase, 120/240v, 4 Jaw, 22k AIC, 16 Pos
ECS-11016-65L16 x 48 x 17 inches100 Amp, 1 Phase, 120/240v, 4 Jaw, 65k AIC, 16 Pos
ECS-12016-10L16 x 48 x 17 inches200 Amp, 1 Phase, 120/240v, 4 Jaw, 10k AIC, 16 Pos
ECS-12016-22L16 x 48 x 17 inches200 Amp, 1 Phase, 120/240v, 4 Jaw, 22k AIC, 16 Pos
ECS-12016-65L16 x 48 x 17 inches200 Amp, 1 Phase, 120/240v, 4 Jaw, 65k AIC, 16 Pos
ECS-51008-10L16 x 48 x 17 inches100 Amp, 1 Phase, 120/208v, 5 Jaw, 10k AIC, 8 Pos
ECS-51008-65L16 x 48 x 17 inches100 Amp, 1 Phase, 120/208v, 5 Jaw, 65k AIC, 8 Pos
ECS-51016-10L16 x 48 x 17 inches100 Amp, 1 Phase, 120/208v, 5 Jaw, 10k AIC, 16 Pos
ECS-51016-65L16 x 48 x 17 inches100 Amp, 1 Phase, 120/208v, 5 Jaw, 65k AIC, 16 Pos
ECS-52016-10L16 x 48 x 17 inches200 Amp, 1 Phase, 120/208v, 5 Jaw, 10k AIC, 16 Pos
ECS-52016-65L16 x 48 x 17 inches200 Amp, 1 Phase, 120/208v, 5 Jaw, 65k AIC, 16 Pos
