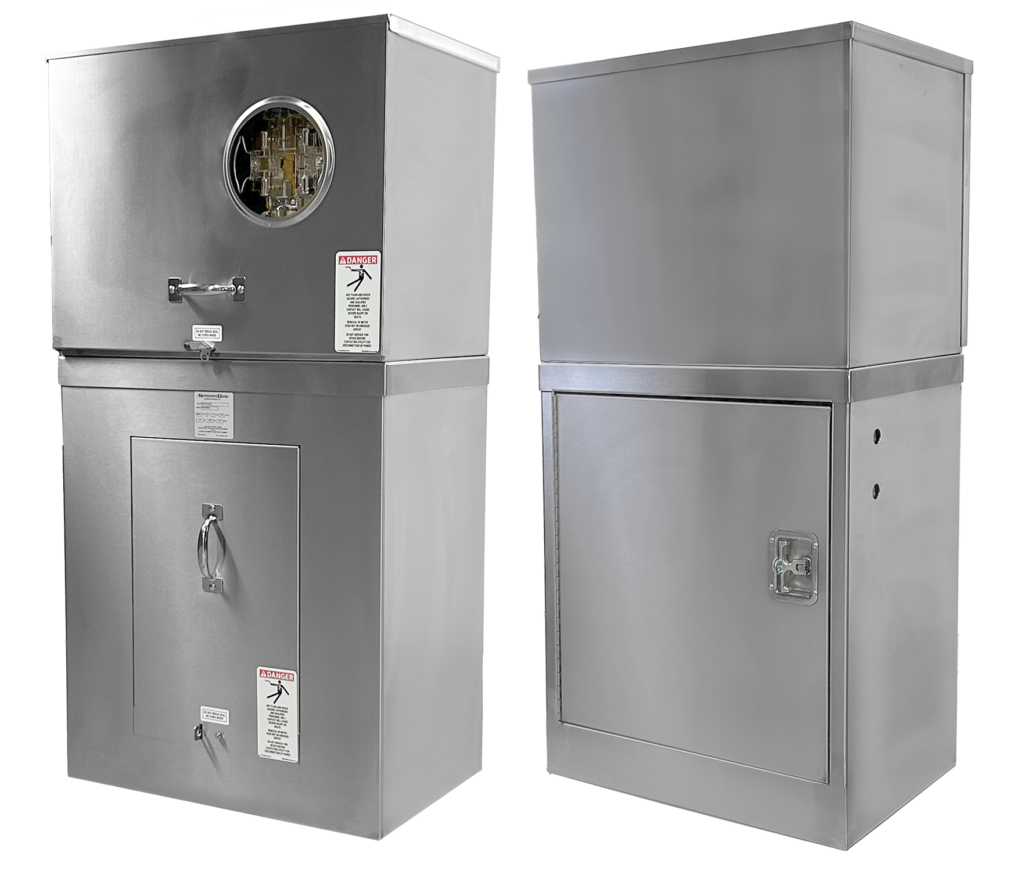

LARGE EXPOSED METER PEDESTAL (ESS)

StrongBox ESS Meter Pedestals are engineered to meet specifications for exposed meter applications, featuring a ringless meter socket with a bypass lever, along with separate utility and customer sections. These service pedestals are available in multiple configurations ranging from 100-200 amps and are constructed from durable, long-lasting stainless steel.

FEATURES:

  • Exposed Meter with Lever Bypass
  • 100-200 amp service available
  • 100% Stainless Steel construction with natural brush finish
  • NEMA Type 3R Rated and UL 508A Listed
  • All access points include padlock provisions

CONFIGURATIONS

Select product number for details
Product NumberSize (Width x Height x Depth)Description
ESS-21018-14L26 x 50 x 17 inches100 Amp, 1 Phase, 240/480v, 4 Jaw, 14k AIC, 18 Pos
ESS-21018-35L26 x 50 x 17 inches100 Amp, 1 Phase, 240/480v, 4 Jaw, 35k AIC, 18 Pos
ESS-21018-65L26 x 50 x 17 inches100 Amp, 1 Phase, 240/480v, 4 Jaw, 65k AIC, 18 Pos
ESS-21030-65L26 x 50 x 17 inches100 Amp, 1 Phase, 240/480v, 4 Jaw, 65k AIC, 30 Pos
ESS-22030-65L26 x 50 x 17 inches200 Amp, 1 Phase, 240/480v, 4 Jaw, 65k AIC, 30 Pos
ESS-61018-14L26 x 50 x 17 inches100 Amp, 3 Phase, 277/480v, 7 Jaw, 14k AIC, 18 Pos
ESS-61018-35L26 x 50 x 17 inches100 Amp, 3 Phase, 277/480v, 7 Jaw, 35k AIC, 18 Pos
ESS-61018-65L26 x 50 x 17 inches100 Amp, 3 Phase, 277/480v, 7 Jaw. 65k AIC, 18 Pos
ESS-61030-14L26 x 50 x 17 inches100 Amp, 3 Phase, 277/480v, 7 Jaw, 14k AIC, 30 Pos
ESS-61030-35L26 x 50 x 17 inches100 Amp, 3 Phase, 277/480v, 7 Jaw, 35k AIC, 30 Pos
ESS-61030-65L26 x 50 x 17 inches100 Amp, 3 Phase, 277/480v, 7 Jaw, 65k AIC, 30 Pos
ESS-62030-35L26 x 50 x 17 inches200 Amp, 3 Phase, 277/480v, 7 Jaw, 35k AIC, 30 Pos
ESS-62030-65L26 x 50 x 17 inches200 Amp, 3 Phase, 277/480v, 7 Jaw, 65k AIC, 30 Pos
